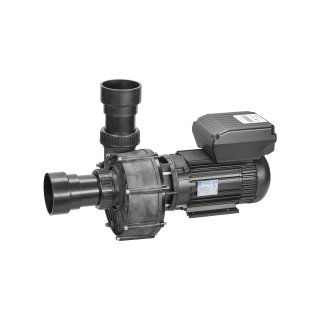

Low head propeller pump SPECK VARIOSTAR SLH60-2-85 incl. FU (0-10V Senect)

Low head propeller pump SPECK VARIOSTAR SLH60-2-85 incl. FU (0-10V Senect)

SKU: SLH60-2-85
Category: Actuators

Technical Specifications
Dimensions:	ca. 544 x 257 x 350 mm
Connection:	DN75 / DN90
Rotational speed:	600 - 1800 rpm
Delivery head:	max. 6.9 m
Weight:	ca. 13 kg
Cable length:	3 m
Power consumption:	0.07 - 1.15 kW
Voltage:	230 V, 50 Hz
Ingress protection:	IP55
Flow rate:	5 - 65 m³/h

2.299,00 €

incl. 19% VAT , plus

Delivery time: 0 - 7 Workdays (DE - int. shipments may differ)

Description
PDF (3)

Highly Efficient Controllable Low-Pressure Pump SLH60-2-85

Optimized for saltwater applications!

Integrated frequency converter for manual or automatic control of the flow rate by SENECT controllers
Sensor-based control possible (e.g. automatic water level regulation in tanks)
Durable and low-wear due to high-quality SIC/SIC + Viton mechanical seal
Very efficient permanent magnet motor
Very quiet for silent operation
Resistant to corrosion thanks to the materials used
The motor or pump shaft does not come into contact with the circuit water
Maximum flow rate with minimal power consumption
Three preset speed ranges selectable by button press on the pump display
German quality product – developed and manufactured in Germany

The SENECT low-pressure pump SLH60-2-85 was developed in cooperation with SPECK and specifically designed for aquaculture applications.

Through the built-in frequency converter, the speed of the pump can be controlled via SENECT control technology – either automatically and sensor-based (e.g. based on water level, oxygen concentration, temperature, etc.) or via remote access using the app. Alternatively, the flow rate can be changed in the SENECT app at the push of a button.

Intelligent Control of the SENECT Low Head Pump with SENECT Control Units

All SENECT control units¹ offer a powerful and comprehensive menu to enable optimal pump performance.

Adjusting the speed and thus the flow rate of the pump to match the filtration system allows for optimal filtration performance with very low energy consumption.

Furthermore, links with other parameters² can be established, so that, for example, the flow rate increases when the oxygen concentration is too low^1,2. Another option is to adapt the pump output based on temperature: at high water temperatures, flow rate increases, at lower temperatures decreases. Another application is maintaining the water level in tanks at a constant overflow level.

¹ Except for FILTER|CONTROL and MONITOR|4
² Respective sensor required, e.g. Oxygen sensor O2S or Temperature sensor TMP

Item information	Value
Item weight:	13,00 kg
