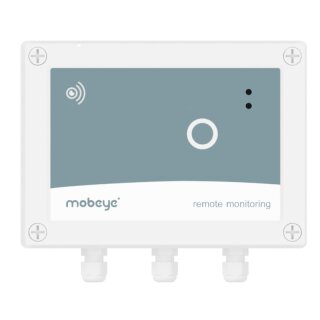

GSM PowerGuard - alerting by phone in the event of a power failure

4G Mobeye Dialer

SKU: 360
Category: Actuators

Technical Specification
Cellular Network:	4G LTE (with automatic fallback to 2G / GSM)
SIM Card:	Included (Mobeye multi-provider SIM card, ready to use; alternatively own SIM card can be used)
Inputs:	2x or 4x potential-free alarm inputs (NO / NC, model-dependent; connection to SENECT actuator or alarm output)
Alerting:	Notification via telephone call (voice alert) and / or SMS to up to 5 telephone numbers
Power Supply:	Battery-operated (mains-independent); model-dependent incl. 12 V power adapter with active 230 V power outage monitoring (PowerGuard)
HS Code:	85176290
Country of Origin:	Netherlands (NL)
Item Weight:	0.65 kg
Shipping Weight:	0.90 kg

Alarm Inputs: 4 Inputs

2 Inputs
Cables Connectors: Actuator output

Alarm output

399,00 €

incl. 19% VAT , plus

This item has variations. Please select the requested variation.

Description

Mobeye 4G Dialer (CM-Guard / PowerGuard)

Reliable emergency alerts via phone call and SMS – future-proof via 4G LTE

Future-proof 4G cellular technology: Reliable alerting via the modern 4G LTE network with automatic 2G / GSM fallback for remote areas with weaker cellular coverage
Direct alerting to up to 5 phone numbers: Immediate notification via voice call and / or SMS in case of an alarm
Includes Mobeye multi-provider SIM card: Automatically connects to the strongest available cellular network – ready to use out of the box (alternatively, own micro-SIM can be used)
Autonomous battery operation: Operates fully independent of the mains grid, ensuring reliable alerts even during a complete power outage
Active 230 V power grid monitoring (Model PowerGuard CM4100): Detects power failure at the mains outlet within seconds
Seamless SENECT integration: Pre-assembled connection variants suitable for the actuator or alarm output of your SENECT control unit

Application

The Mobeye 4G Dialer is an indispensable safety component for every professional aquaculture facility, recirculating aquaculture system (RAS), fish hatchery, and research station. If mains power fails or the local Wi-Fi router crashes, conventional app- or internet-based warnings fail to send. The Mobeye dialer operates completely self-sufficiently via the cellular network, ensuring that critical emergency alarms reach you anytime, anywhere.

In an emergency – triggered by threshold violations of vital water parameters (e.g. acute oxygen drops) or a power blackout – the module automatically dials a sequence of up to 5 preset telephone numbers and sends detailed SMS alerts in parallel. This allows for immediate on-site intervention before fish stocks are harmed.

Pre-assembled Connection Options for SENECT Control Units

To make commissioning as straightforward as possible, the Mobeye 4G Dialer is available with matching connection cables for your SENECT control unit:

Actuator Output Option: Equipped with pre-assembled cables for the actuator output of the controller. Ideal for specific threshold alerts (e.g. when oxygen drops below 90 %, water levels fall, or water temperature reaches critical limits).
Alarm Output Option: Equipped with suitable cables for the potential-free alarm output of the controller. Ideal for reporting collective errors, device malfunctions, or a total power failure of the control unit.

Model Variant PowerGuard: Active 230 V Mains Power Monitoring

In the PowerGuard (CM4100) model variant, the device includes a 12 V DC plug-in power supply. When plugged into a standard wall socket, the module continuously monitors the 230 V mains voltage. If the power supply of the building or distribution box fails, the device seamlessly switches to its internal backup batteries and immediately triggers the blackout emergency call.

Includes Mobeye Multi-Network SIM Card:

The unit comes supplied with a pre-configured Mobeye multi-network SIM card. This card automatically connects to the strongest local cellular provider, ensuring maximum connection reliability. Activation is easily completed online. Alternatively, the device can also be operated with any standard commercial micro-SIM card.

Item information	Value
Scope of Application:	Koi Pond & Garden Pond Aquaculture Recirculating Aquaculture Systems (RAS)Research and Conservation Breeding: Institutes and Universities Public Aquariums and Zoos Aquaponics and Hydroponics Freshwater Saltwater Brackish Water / Salt Treatment
Purpose:	Oxygen Dosing / Emergency Aeration Automatic Water Refill (Level Balancing)Automatic Feeding Operation / Control of a Drum Filter Emergency Alert with physical Alarm Output Digital Emergency Alert Optical & Acoustic (LED Strobe + Siren)Actively monitors the 230V mains voltage. If the power goes out, the device seamlessly switches to its internal backup batteries and immediately sends out alarm calls and text messages.Power outage alert & automated/manual activation of emergency O2 / aeration
Ingress protection:	IP65 water resistant
Alarm function:	SMS, Voice call, E-Mail / Push
Material:	Polycarbonate (impact and UV-resistant)UV-Stable, Food-Grade Plastic (Polyethylene PE, blue)
Power Plug Type:	Europlug (Type C / CEE 7/16) on 12V power adapter
Sensor inputs:	2x Digital input (NO / NC dry contact)4x Digital input (NO / NC dry contact) + 1x 230V mains power monitoring
Compatibility:	All controllers with an alarm output
Actuator Outputs:	1x Relay output (dry contact) for emergency control (e.g. emergency O2, aeration)1x Alarm output (relay) for alert signaling (e.g. strobe light, siren, fault loop)
Power Supply:	12 V DC (mains adapter) with internal backup battery buffer (CR123A)
Switching Capacity (Output port):	Max. 1 A / 30 V DC
