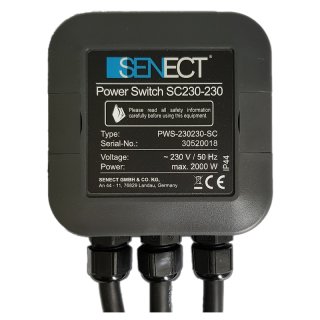

Power Switch 230VAC SC230-230

SKU: 3101
GTIN: 4260494280616
Category: Actuators

Technical Specification
Dimensions (housing):	125 x 100 x 40 mm
Material (housing):	ASA
Power consumption:	< 2 W
Control signal (input):	230 V AC (alternating current)
Switching power (output):	max. 2000 W
Cable length:	1 m each
Ingress protection:	IP54
Item weight:	0.87 kg
Shipping weight:	1.2 kg

Type: SC24-230

SC230-230

129,00 €

incl. 19% VAT , plus

Delivery time: 2 - 9 Workdays (DE - int. shipments may differ)

Power Switch 230-230

Maximising output power – switching 230 V AC consumers with the Power Switch SC 230-230!

To switch 230 V AC consumers via 230 V AC outputs
For max. 2000 W consumers
With Schuko IP54 plugs and sockets

Application

The SENECT Power Switch 230-230 can be used to switch 230 V AC devices on and off via the 230 V AC socket outputs of SENECT control units.

This enables, for example, utilizing the socket outputs of controllers like the FILTER|CONTROL to operate high-power consumers (up to 2000 W). Additionally, acting as an external contactor, it protects the internal relays of the control unit from overload and high inrush currents.

How it works:

This module uses a 230 V AC control signal from the socket outputs of the controller (e.g. FILTER|CONTROL) to switch an integrated 230 V outlet. It acts as a contactor, protecting the controller's internal relays from high inrush currents.

Technical Specifications

In the SENECT Power Switch, the OMRON G7L-2A-TUB relay serves as the central switching element, making it possible to precisely control electrical devices. The combination of high switching capacity and compact design enables efficient integration into automated aquaculture systems where reliability and safety are top priorities. The OMRON G7L-2A-TUB is a powerful, monostable power relay designed for high switching currents and voltages. It is particularly suitable for applications where reliable switching of inductive loads is required and is characterized by its high capacity and dielectric strength.
